方形搖擺篩使用說明書英文版

作者:搖擺篩時間:2020-08-11 09:53:24瀏覽: 次

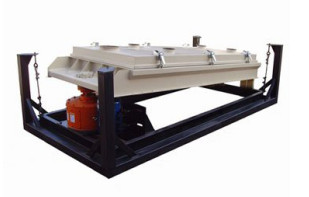

PXSJ Square Swing Screen

Introduction

Square Swing Screen is a kind of device famous for its large capacity ,high efficiency and high precision. It is universally used in chemical and metallurgical, mining, feed, food and other industries., especially for heavy alkali, salt, resin, fertilizer, urea granule size, feed, reduced iron powder, zirconium oxide, ceramic, barite, etc.

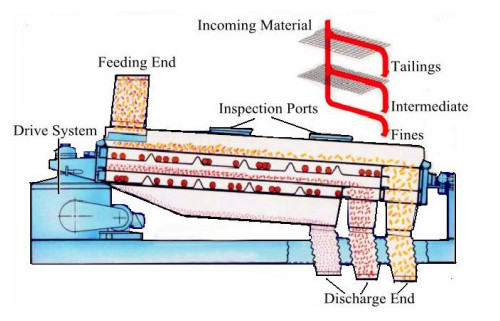

  Working principle

The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion thus keeping the material in constant contact with the screen surface.

Applied fields

It is widely used in chemical and metallurgical, mining, feed, food and other industries. Especially for heavy alkali, salt, resin, fertilizer, urea granule size, feed, reduced iron powder, zirconium oxide, ceramic, barite, etc.

Feature

1. Good sealing, balance weight can provide slight vibration and low noise, environmental protection.

2. Combination of circle, elliptic, linear motion, high screening effect .Suitable for various material screening.

3. Equipped with automatic tension and automatic cleaning sieve net installation system which can make the screen mesh long service life and high efficiency , change the screen mesh conveniently.

Reinforced base ensure balance operation of the equipment.

5. Improve wire rope hanging structure, to avoid steel wire wear

6. Two or three decks screen frame design can be chosen.

7. Used for powder or granule feed screening and grade, can also be used for voidance of raw materials in feed factory.

Parameters


Layer



Model

Screen surface: length*wide

(mm)

Screen box stroke

(mm)

Motor



Weight

kg

Power

kw

Revolving speed

rpm

1

PXSJ1000X1400

1000X1400

63.5

1.5

960

715

PXSJ1000X2100

1000X2100

63.5

1.5

960

980

PXSJ1000X3000

1000X3000

63.5

1.5

960

1200

PXSJ1500X2100

1500X2100

63.5

1.5

960

1380

PXSJ1500X3000

1500X3000

76

2.2

960

1340

PXSJ1500X3600

1500X3600

76

5.5

960

2410

PXSJ1200X3600

1200X3600

76

5.5

960

2020

2

2PXSJ1000X2100

1000X2100

63.5

1.5

960

1400

2PXSJ1000X3000

1000X3000

76

4

960

1840

2PXSJ1500X2100

1500X2100

63.5

4

960

1710

2PXSJ1800X3600

1800X3600

76

7.5

960

3880

2PXSJ1500X3000

1500X3000

76

7.5

960

2780

2PXSJ1500X3600

1500X3600

76

7.5

960

3180

3

3PXSJ1000X2100

1000X2100

63.5

5.5

960

2150

3PXSJ1500X3000

1500X3000

76

5.5

960

3200

3PXSJ1800X3600

1800X3600

76

7.5

960

4170

3PXSJ2000X5000

2000X5000

92

11

960

5500
